GulfStar Solar Project
Project Overview
Battery Units
MANUFACTURER: Wartsila
MODEL: Grid Solv Quantum
PCSM
MANUFACTURER: Power Electronics
MODEL: FREEMAQ FP4200
The GulfStar Solar 600 MW BESS
- 84 POWER ELECTRONICS PCS Modules
- 168 ACC/DCC Cabinets
- 480 WARTSILA Quantum Cubes
The GulfStar 345 kV Substation
- 3 Main Power Transformers
- 20 Low Side Brakers
- 4 High Side Breakers
- 7 Static Masts and 2 Dead End Structures
- 90,000 lbs. Control Building

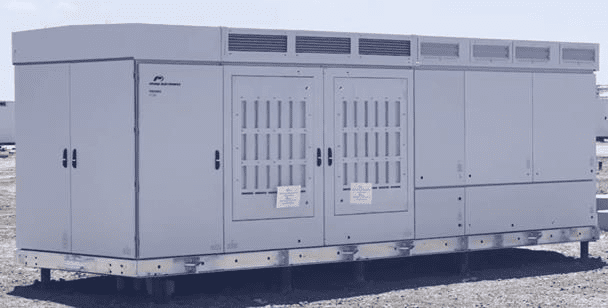

FREEMAQ PCSM
The FREEMAQ PCSM requires 10 Contact Points in “Moderate Seismic Activity Areas” which is most of Texas.
We alerted the Client to this requirement, as the other vendors had only bid 6 to 8 Contact Points, so we were able to properly bid the job without having to ask for a change order, saving time, money, and client aggravation.
The work we did ahead of time with the EOR, our Engineer, and the field crew insured that when we were long gone, and the batteries and PCS’s showed up, that all the hard work we did paid off for the installation crews behind us.
Jig Measurements for PCS
Dsign and Fabrication
We then designed and fabricated a custom jig with pre-drilled bolt holes that we used to install the PCS cap plates.
Ready for Delivery
This way, the pre-drilled holes lined up perfectly with the PCS Units, so upon delivery their team was able to install them seamlessly.
We first would bolt the plate caps to the jig, lower the jig onto the 10 PCS Piles, then survey would align the caps and bolt holes up perfectly before we would weld them in place, leaving no room for error.
Once the jig was built, checked, and double checked by survey, each of the 840 PCS plate caps were then installed exactly the same.
We first would bolt the plate caps to the jig, lower the jig onto the 10 PCS Piles, then survey would align the caps and bolt holes up perfectly before we would weld them in place, leaving no room for error.
Once the jig was built, checked, and double checked by survey, each of the 840 PCS plate caps were then installed exactly the same.
